R407C or R134a refrigerated air dryer for air compressor with high performance
- Price
- US $600
- Model
- SLAD-6NF
- MOQ
- 1 unit
Item specifics
- Air inlet temp
- ≤60°C
- Cooling way
- Air-cooled
- Ambient temp
- ≤50°C
- Pressure dew point
- 2~10°C
- Air inlet pressure
- 0.6~1.6MPa
- Heat exchanger
- plate-fin heat exchanger
- Place of origin
- Hangzhou, China
- Capacity
- 6.5m3/min
- Warranty
- 18 months
- Color
- depend on requirement
Review
Description

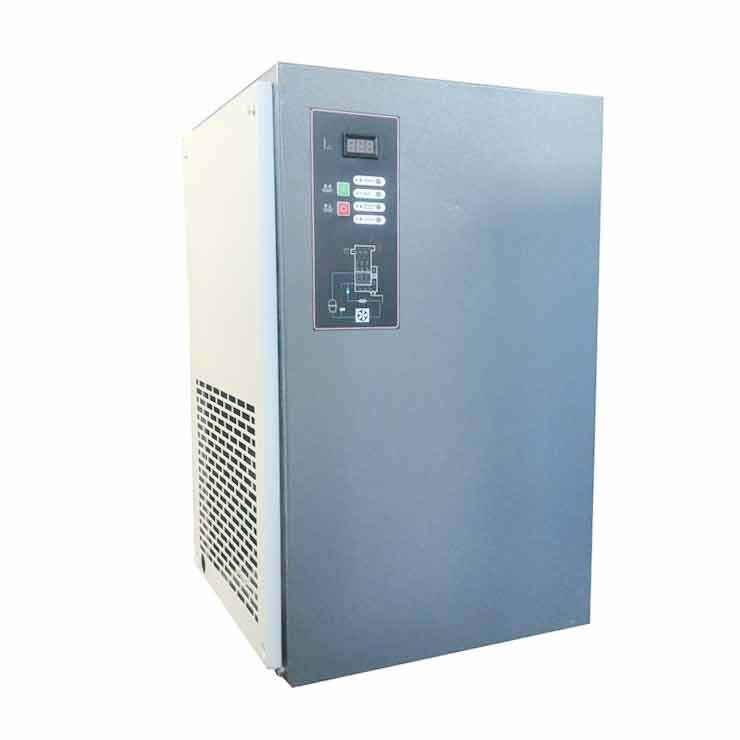

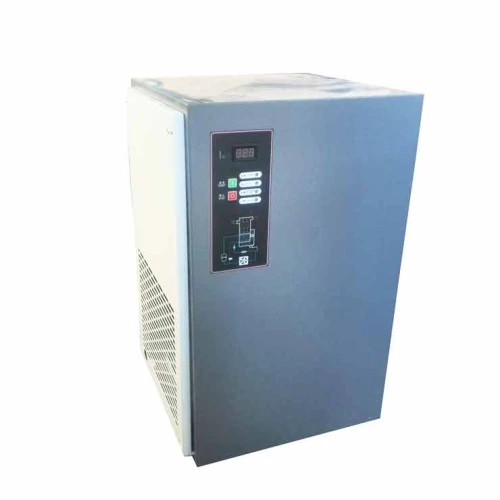

Product name: Air-cooled refrigerated air dryer
Product model: SLAD-6NF
Product Function
● Dry, quality air is vital for long-term, trouble-free operation of your processes. SHANLI SLAD series dryers protect your products and systems against damage or corrosion.
● They remove moisture from compressed air with a dew point as low as 2-10 °C/35.6-50 °F. Easy to install, simple to operate and reliable, they provide the dry air you need, allowing you to concentrate on your core business.
Technical Specifications
● Pressure range: 0.6-1.6 Mpa
● Max air inlet temp.: 60 Deg C
● Max ambient temp.: 50 Deg C
● Cooling method: air cooled type / water-cooled type
● Pressure dew point: 5 Deg C
● Power: 220/380V-1PH-50HZ
● Refrigerant: R-22 (R-407C, R-134A as optional)
Note: Refrigerated air dryer without metal box board for over 80 m3/ min. Other special standards can be customized.
Working Principle
Refrigeration compressed air dryer makes the water vapor in the compressed air condenses into droplets through cooling so as to achieve the purpose of reducing moisture content. Condensed droplets are discharged by the automatic drainage system.
Annotation:
| 1. Cooling medium compressor | 6. Manual valve | 11. Hot gas by-pass valve |
|---|---|---|
| 2. Air condenser | 7. Cooling medium sight glass | 12. Water volume adjustable valve |
| 3. Water condenser | 8. Expansion valve | 13. Pre-cooling gas |
| 4. Magnetic valve | 9. Automatic drainer | 14. Evaporator |
| 5. Drying filter | 10. Gas water separator | 15. Effective separator |
Performance Parameters
| Refrigerated Compressed Air Dryer | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Model | Flow Capacity (Nm3/min) | Voltage (V) | Fan Power (W) | Pipe Diameter | Air Inlet Pressure (Mpa) | Net Weight (Kg) | Length (mm) | Width (mm) | Height (mm) | Air Flow (N3/h) |
| SLAD-0.5NF | 0.65 | 220 | 1x67 | G1/2" | 0.6-1.0 MPa | 45 | 750 | 430 | 610 | 760 |
| SLAD-1NF | 1.2 | 220 | 1x67 | G1" | 70 | 780 | 450 | 610 | 760 | |
| SLAD-2NF | 2.5 | 220 | 1x95 | G1" | 110 | 800 | 460 | 720 | 1580 | |
| SLAD-3NF | 3.6 | 220 | 1x150 | G1" | 130 | 950 | 480 | 720 | 3150 | |
| SLAD-4.5NF | 5 | 220 | 1x240 | G1 1/2" | 150 | 1170 | 540 | 750 | 5580 | |
| SLAD-6NF | 6.8 | 220 | 2x150 | G1 1/2" | 160 | 1350 | 520 | 753 | 6300 | |
| SLAD-8NF | 8.5 | 220 | 2x195 | G2" | 200 | 1100 | 670 | 1098 | 8470 | |
| SLAD-10NF | 10.9 | 380 | 2x195 | G2" | 250 | 1200 | 670 | 1098 | 8470 | |
| SLAD-12NF | 12.8 | 380 | 2x195 | G2" | 300 | 1200 | 670 | 1048 | 8470 | |
| SLAD-15NF | 16 | 380 | 2x190 | DN65 | 320 | 1460 | 750 | 1630 | 8470 | |
| SLAD-20NF | 22 | 380 | 2x240 | DN65 | 420 | 1670 | 800 | 1663 | 11160 | |
| SLAD-25NF | 26.8 | 380 | 2x240 | DN80 | 550 | 1820 | 800 | 1713 | 11160 | |
| SLAD-30NF | 32 | 380 | 2x380 | DN80 | 650 | 1900 | 860 | 1875 | 15240 | |
| SLAD-40NF | 43.5 | 380 | 3x240 | DN100 | 2200 | 2200 | 930 | 1941 | 16740 | |
| SLAD-50NF | 53 | 380 | 3x380 | DN100 | 2450 | 2450 | 900 | 2110 | 22860 | |
| SLAD-60NF | 67 | 380 | 4x380 | DN125 | 2140 | 2140 | 1450 | 1787 | 30480 | |
| SLAD-80NF | 90 | 380 | 4x550 | DN125 | 2070 | 2070 | 1600 | 2029 | 42400 |
Established in 1997, Hangzhou Shanli Purify Equipment Corporation is an enterprise specialized in design, development
and production of compressed air dryers, filters and other purification equipments. Our company has a workshop of
30, 000 square meters and more than 300 staff. Shanli has become one of the largest refrigerated air dryer manufacturers
in the Chinese purification industry with the top sales turnover. Our self-design and self-made equipment is compatible with many
famous brands of air compressor to efficiently remove water, oil and dustfrom compressed air. On basis of IS0 9001
certification standard, our design, production, test and services of the machine are all well managed and strictly
controlled since year 2001.
Shanli refrigerated air dryers are widely used in industry such as pharmaceutical industry,automobile making,textile
industry,war industry,iron and steel industry,petroleum and petrochemical,Electronics Industry
