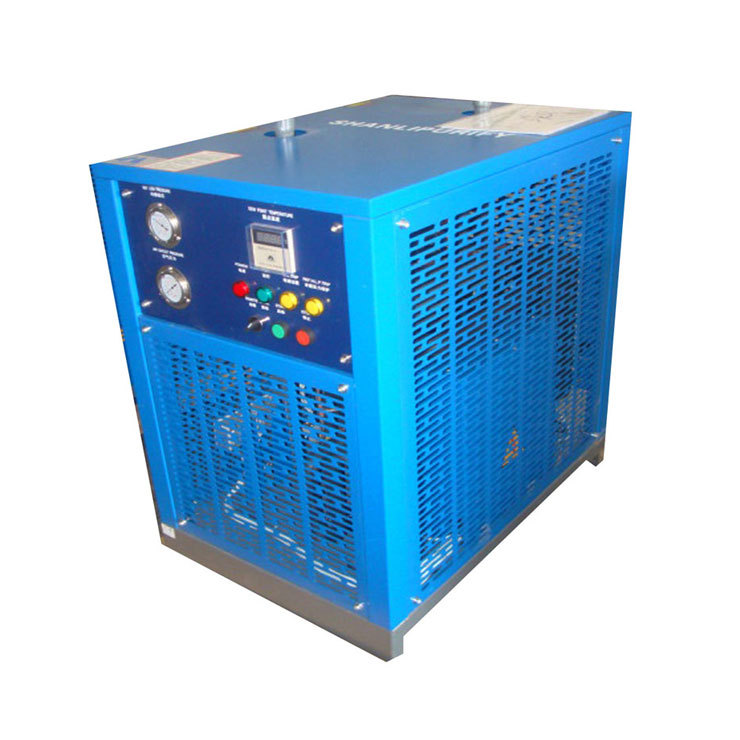

2017 Hot Saling Plate Fin Type Air Cooled Refrigerated Air Dryer

2017 Hot Saling Plate Fin Type Air Cooled Refrigerated Air Dryer

Summary

2017 Hot Saling Plate Fin Type Air Cooled Refrigerated Air Dryer

Technical Data
Capacity:0.5-300m3/min
Max working pressure:1.6 MPa
Max.inlet temperature: 60 C
Max.Ambient temperature: 50 C
Min.ambient temperature: 5 C
Cooling type: air-cooled
Power supply: 220V/380V/50Hz or 60Hz
Refrigerant: R134a /R407C /R410A
*Rated condition:
Working pressure 0.7MPa,
Inlet temperature 38C
Ambient temperature 38C
PDP 2-10C
OEM and ODM service is available.
Compressor:Hitachi or Bitzer
Hot gas by pass valve:Danfoss
Automatic expansion valve:Danfoss
Heat Exchanger:Aluminum plate fin type
Auto Drain:Electric Drainer
Note: Refrigerator air dryer without metal box board for over 80 m3/ min.
Other special standards can be customized.
